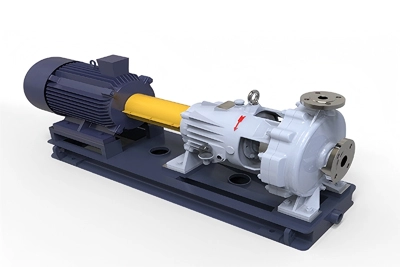

Name: OH1 Type End Suction Process Pump
Brand: LUBOR PUMP
Availability: InStock

Specification and Performance of OH1 Type End Suction Process Pump

Standard	API610 OH1/ANSI B73.1M/ISO5199
Casing	Radial Casing

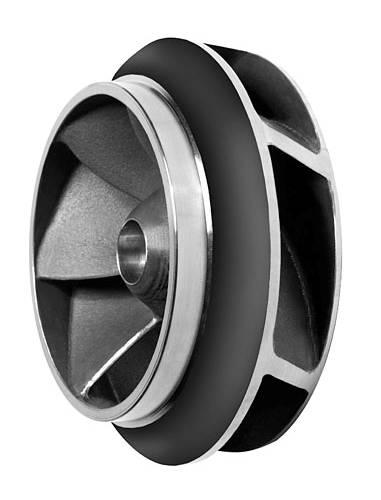

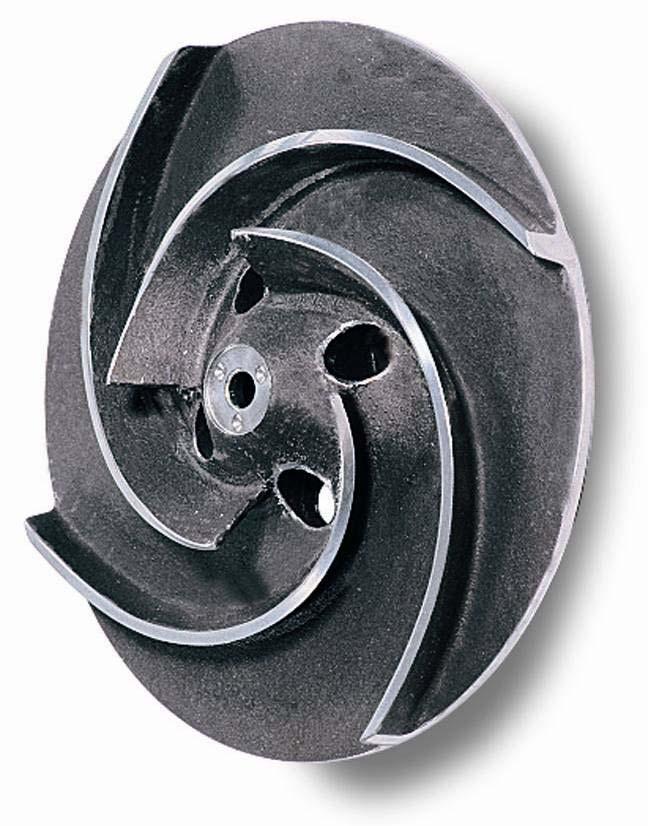

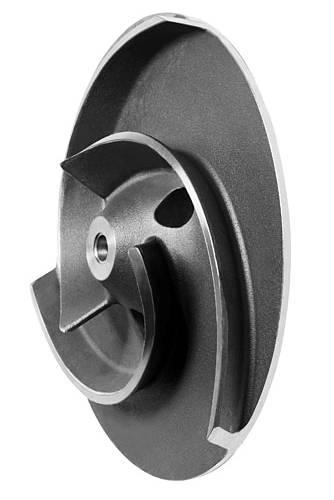

Impeller	Open/semi open/closed
Capacity	Up to 2000 m³/h / 8800 US gpm
Head	Up to 250m / 820ft
Frequency	50/60Hz
Temperature	Up to 260℃/520℉
Discharge size	32 to 700 mm / 1 ¼ to 28 inches
Pressure	Up to 25 bar / 362 psi
Drive	Motor, diesel engine / gear

Accessories support

Motor	ABB/Siemens/WEG
Coupling	TRUMY
Mechanical seal	John Crane
Flushing system	Colossus
Bearing	SKF/FAG
Electric	ABB/Siemens/DELIXI

Industries Served by OH1 Type End Suction Process Pump

APPLICATION

Clean and lightly contaminated liquids
Viscous liquids
Fibrous slurries
Large solids containing liquids
Gas containing liquids and self-priming applications
Clean and slightly-contaminated liquids
Corrosive and abrasive liquids
Slurry applications

Application Examples

Petroleum Refinery

Petroleum refinery generally consist of sorts of process plants such as atmospheric and vacuum distillation, hydrogenation desulfurization, catalytic cracking, catalytic reforming, delayed coking, gas processing and product refining, and by which crude petroleum is refined to such as various grades of gasoline, kerosene, diesel oil, lubricating oil, solvent oil, wax, asphalt, petroleum coke, as well as the production of basic raw materials of various petrochemical.Pumps serviced in refinery plants are requested to be of high reliability. The widest applications of pumps are over-hung type and betweenbearing type centrifugal pumps, and its quantities is almost up to 80% of the total used pumps.
